[Summary]
- The match is basically determined by getting points in the game. Your team can get points by attaching "Seeds of HANABI"(objects) to "HANABI" (panel) on the Night Sky (back panel). If your team can achieve massive waterfall Hanabi - called Niagara Hanabi on the Eco-Zone, then "Big HANABI" (parasol) is opened. And your team can also get special points by attaching "Seed of HANABI" to "Big HANABI".
[Game Rule]
- Two teams play the game in a match.
- All machines have to leave the 500mm cubic starting area on your side at the starting time.
- Time limit is 90 seconds.
- After the time limit, the referee judges the winner of the match according the points as mentioned bellow.

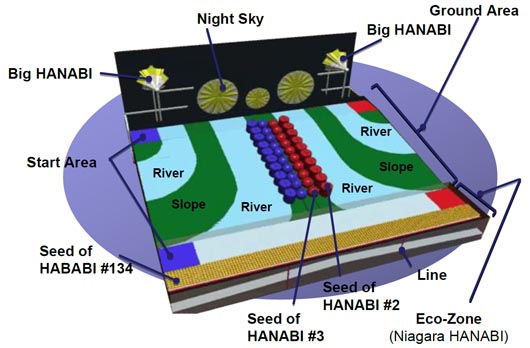

[Field]
- Night Sky
- Night Sky is the wall located on the back-end and painted three circles as "HANABI", If your team can attach the "Seeds of HANABI #2" or "Seeds of HANABI #3" on a "HANABI" more than the opponent team, your team can take points of "HANABI". The center "HANABI" is 20 points and the both side one's are 10 points each.
When "Big HANABI" of your team is opened, your team can also get special points to attach "Seeds of HANABI #2" or "Seeds of HANABI #3" to the top part of "Big HANBI". The attached "Seeds of HANABI" on "Big HANABI" is 40 points each. (These points are tentative and may be changed.)
- Ground Area
- The Ground Area is consisted of a slope and has four rivers that are considered as a symbol of Adachi City. Cylinders and balls that are called as "Seeds of HANABI #2" and "Seeds of HANABI #3", respectively are set on the center of the area.
- Eco-Zone
- The Eco-Zone is located on the most foreground of the game field. Machines that have NO ELECTRICAL ACTUATORS are allowed to enter the area. Although, the machines can be equipped the electrical actuators as long as the actuators do not work themselves principally like as pulling pins.
On this area, massive ping-pong balls - called "Seeds of HANBI #1" are set, and Niagara Hanabi is achieved to fall down the balls to the front side.
If the balls are fallen down and the top of the fallen balls is over the pre-decided line statically, your team can take 10 points, and then "Big HANABI" is opened. The judgment is done by assistance referees.
[Material & Parts of Machine]
[Energy]
- Gravity potential
- The elasticity energy generated by a spring
- The electric energy generated by the controller unit
- The compressed air generated by the distributed air tube
Pats List
Article | Quantity | Recyle(*) |
Plywood | 450 x 600 x 6 | 2 | |
Plywood | 20 x 20 x 600 | 2 | |
Aluminum plate | 450 x 600 x 0.5 | 1 | |
Aluminum plate | 450 x 600 x 1.2 | 1 | |
Aluminum plate | 450 x 600 x 2.5 | 1 | |
Aluminum flat bar | 6 x 50 x 500 | 1 | |
Aluminum "L"Profile | 30 x 30 x 500 (t=2) | 2 | |
Aluminum "L"Profile | 40 x 40 x 500 (t=2) | 2 | |
Aluminum square pipe | 15 x 15 x 500 (t=2) | 2 | |
Aluminum rod | φ6 x 500 | 2 | |
Aluminum rod | φ3×1m | 2 | |
Acrylic board | 500 x 500 x 6 | 1 | |
Acrylic board | 500 x 500 x 3 | 1 | |
Rubber sheet | 1000 x 150 x 1 | 1 | |
Rubber band | d=20, length=400 | 4 | |
Rubber bond | | 1 | |
Adhesive Tape | d=25 | 1 | |
D-sub connector(15pin) | | 2 | |
Motor | | 2 | ○ |
DC motor | | 4 | ○ |
Pneumatic cylinder | | 4 | ○ |
Micro-switch | | 2 | |
Solenoidal electromagnet | | 2 | ○ |
Free bearing | | 4 | |
Bearing | | 3 | |
Gear box | | 2 | |
Cardboard | 470 x 370 x 170 | 1 | |
Traditional Japanese paper | | 1 | |
Bamboo | 1m | 2 | |
Bamboo Basket | | 1 | |
Japanese hand towel | | 1 | |
Spiral spring | L=1000, 2.0[kg] | 2 | ○ |
Aluminium wire | φ1.6 x 1m | 1 | |
Aluminium wire | φ0.7 x 1.8m | 1 | |
Plastic tie | 120mm | 10 | |
Plastic tie | 200mm | 10 | |
Plastic tie | 280mm | 5 | |
Clip (small) | | 10 | |
Clip (large) | | 10 | |
Polyurethane tube | 800mm | 1 | |
Free article: black wire, red wire, screw |
( *)Irreversible working such as cutting or bending is prohibited so that we can recycle these materials after contest
|
|
|
|
| | |
